Description

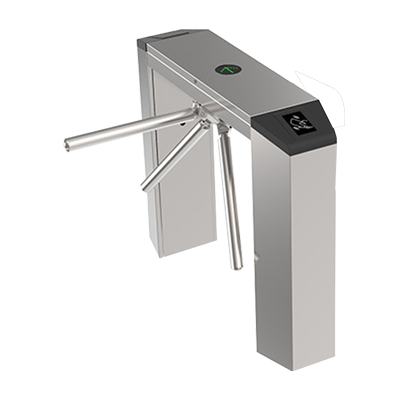

DT2000
TRIPOD TURNSTILE
Features:
Product Size: 200*200*980mm,
Pass Width: <=550mm,
Thickness: SS 1.2mm
Housing Material: Stainless Steel 304 .
TECHNICAL SPECIFICATIONS
- Product Size: 200*200*980mm
- Pass Width: <=550mm
- Thickness: SS 1.2mm
- Housing Material: Stainless Steel 304
- Arm Material: Stainless Steel Cylinder pole
- Pass rate: 20-25 Persons/minute
- Power Supply: 100-240V (AC)
- Operational Voltage: 24V (DC)
- Max Power Consumption: 35W
- Frequency: 50-60 Hz
- Working Temperature: -25 to +700
- Operating Modes: Bi-directional with Single passage
- Operating Time: 0.2 Seconds
- MCBF: 3,000,000cycles
OPERATING MODES:
- Single passage in the set direction
- Bi-directional single passage
- Free passage in the set direction
- Always free or locked Operating Mode
FEATURES
- Molded Turnstile Machine Core, Power Supply Box, with advance smart sleek turnstile controller.
- Use of RFID IC cards, ID cards, Barcode or magnet-ic cards as automatic identification system and achieve access attendance, fees or function.
- A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
- Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
- Single or bi-directional function in mechanical and electrical versions.
- Automatic reset of barrier arms after each passage.
