Description

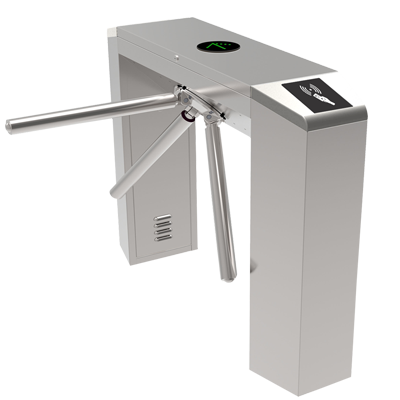

ETA-2000
HEAVY DUTY AUTOMATIC TRIPOD TURNSTILE
Features:
Passage width : 520mm ,
Throughput rate : 35 p/m,
Max tolerance of Arms : 80 Kg ,
Dimension Excluding Bar : 1200x280x980 mm.
TECHNICAL SPECIFICATIONS
- Passage width : 520mm
- Throughput rate : 35 p/m
- Power supply : 100 ~ 240V
- Operational voltage : 24V
- Max tolerance of Arms : 80 Kg
- Angle per rotation : 120°
- Operation Type : Oneway – Bidirectional
- Input control signal : Dry contact
- Max Power Consumption : 30 W
- Frequency : 50 ~ 60hz
- Protection level : IP44
- Working temperature : -25°C ~ +70°C
- Electro – magnetic drive : DC
- Dimension Excluding Bar : 1200x280x980 mm
- Net weight including bar : 52kg
- Opening Duration : 5s – 60s
FEATURES : CONTROLLER
- Full-Auto mode
- Single or Bi-directional function in mechanical and electrical
- Automatic reset of barrier arms after each passage
- Adjustable time out delay
OPERATING MODE
- Single passage in the set direction
- Bi-directional passage
- Free passage in the set direction
- Always free or locked
MATERIALS
- Housing : Made in metal sheet and painted, in or stainless steel AISI 304 or AISI 316
- Barrier Arms : Stainless steel
- Lid (Optional) : Stainless steel or artificial stone(black / brown)
COLOURS & FINISHES
- High quality powder coating plus lacquered finish
- Dark grey color high quality powder coating plus lacquered finish
- Sandpaper powder coating with pearl mica effect
SECONDARY CONTROLLER
- Users : 30000 (RFID)
- Fingerprint : 3000
- Transaction storage : 100000
- Integrated Controller : inbio-260
- Relay : 12 V relay for lock
- Support Fire Alarm : Yes
READER
- RFID : Yes | Fingerprint : Yes
- Protocol : RS485 / Mifare/Proxy (Optional) : Yes
