Description

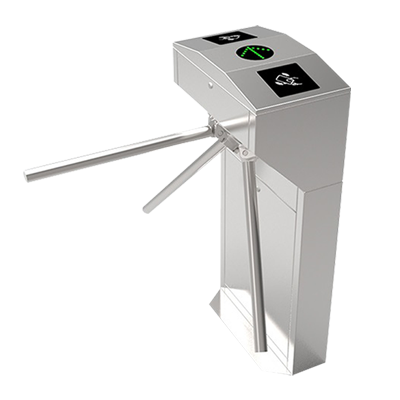

ETA-1000
HEAVY DUTY AUTOMATIC TRIPOD TURNSTILE
Features:
Passage width : 550mm ,
Throughput rate : 35 p/m,
Max Power Consumption : 30 W ,
Dimension Excluding Bar : 480x280x980 mm .
TECHNICAL SPECIFICATIONS
- Passage width : 550mm
- Throughput rate : 35 p/m
- Power supply : 100 ~ 240V
- Operational voltage : 24V
- Max Power Consumption : 30 W
- Frequency : 50 ~ 60hz
- Protection level : IP44
- Working temperature : -25°C ~ +70°C
- Electro – magnetic drive : DC
- Net weight including bar : 44kg
FEATURES : CONTROLLER
- Semi-Auto mode
- Full-Auto mode
- Pure Mechanical mode
- Single or Bi-directional funtion in mechanical and electrical
- Automatic reset of barrier arms after each passage
- Adustable time out delay
OPERATING MODE
- Single passage in the set direction
- Bi-directional passage
- Free passage in the set direction
- Always free or locked
SECONDARY CONTROLLER
- Users : 30000 (RFID)
- Fingerprint : 3000
- Transaction storage : 100000
- Integrated Controller : inbio-260
- Relay : 12 V relay for lock
- Support Fire Alarm : Yes
READER
- RFID : Yes | Fingerprint : Yes
- Protocol : RS485 / Mifare/Proxy (Optional) : Yes
