Description

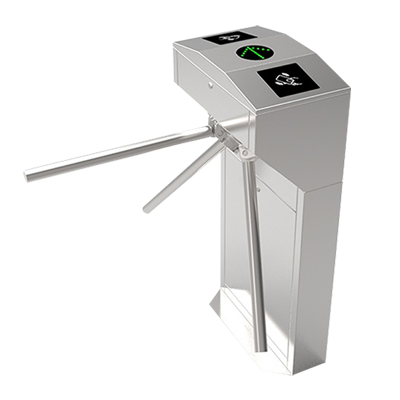

ET-1000
HEAVY DUTY TRIPOD TURNSTILE
Features:
Passage width : 520mm ,
Throughput rate : 35 p/m,
Electro – magnetic drive : DC,
Net weight including bar : 44kg.
TECHNICAL SPECIFICATIONS
- Passage width : 520mm
- Throughput rate : 35 p/m
- Power supply : 100 ~ 240V
- Operational voltage : 24V
- Max power consumption : 30 W
- Frequency : 50 ~ 60hz
- Protection level : IP44
- Working temperature : -25°C ~ +70°C
- Electro – magnetic drive : DC
- Dimension excluding bar (in mm) : (L)480 x (W)280 x (H)980
- Net weight including bar : 44kg
FEATURES
- Semi-Auto mode
- Pure mechanical mode
- Single or Bi-directional function in mechanical and electrical versions
- Automatic reset of barrier arms after each passage
- Adjustable time out delay
OPERATING MODE
- Single passage in the set direction
- Bi-directional passage
- Free passage in the set direction
- Always free or locked Materials
- Housing : SS304
- Barrier Arms : Stainless steel
- Lid (Optional) : Stainless steel or artificial stone(black / brown)
SECONDARY CONTROLLER
- Users : 30000 (RFID)
- Fingerprint : 3000
- Transaction storage : 100000
- Integrated Controller : inbio-260
- Relay : 12 V relay for lock
- Support Fire Alarm : Yes
READER
- RFID : Yes | Fingerprint : Yes
- Protocol : RS485 / Mifare/Proxy (Optional) : Yes
