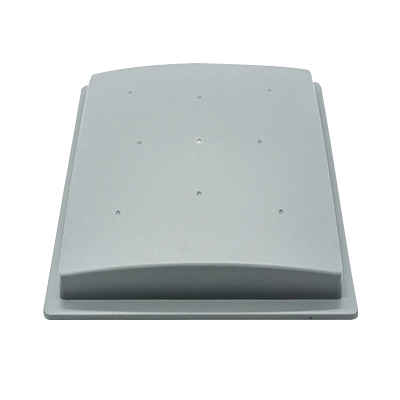

U-5
UHF MIDDLE RANGE INTEGRATED RFID READER
Features:
Protocol : ISO18000-6C,EPC G2,
RF power : 0～31dBm adjustable,
Sensitivity : -80dBm( 9dBi antenna more than 6m）
TECHNICAL SPECIFICATIONS
- Frequency : US(902～928MHz), China(920～925MHz), EU(865～868MHz), other frequency selectable
- Protocol : ISO18000-6C,EPC G2
- RF power : 0～31dBm adjustable
- Sensitivity : -80dBm( 9dBi antenna more than 6m）
- Processor : ARM CORTEX M3 100M CPU
- Memory : 16KB tag data memory and 32KB Nonvolatile storage
- Data Interface : 100M Ethernet Interface RS232,RS485, Wiegand 26/34 1 set input and 1 set output（TTL),1 set relay
- Power supply : DC+9V～+15V
- Working temp : -20℃ ～ 60℃
- Dimension : 280 mm×280 mm×68.5 mm
