Description

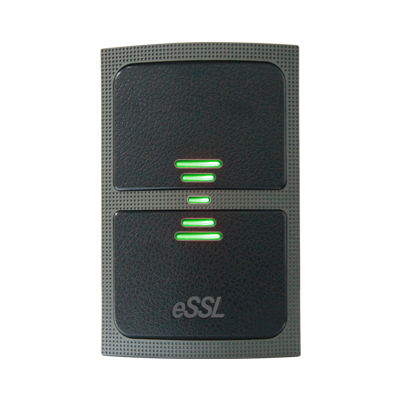

KR503-M
MIFARE CARD READER
Features:
Mifare Card Reader,
Read Range : Up to 5CM ,
Communication : RS485,
Reading Time (Card) : ≤300ms,
Power / Current : DC 6-14V / Max.70mA
TECHNICAL SPECIFICATIONS
- KR503M: 13.56MHz Mifare card reader
- Read Range : Up to 5CM
- Communication : RS485
- Reading Time (Card) : ≤300ms
- Power / Current : DC 6-14V / Max.70mA
- Input Port: 2ea (External LED Control, External Buzzer Control)
- Output Format : 26bit Wiegand (default) / 34bit Wiegand (default)
- LED Indicator : 2 Color LED Indicators(Red and Green)
- Beeper : Yes
- Operating Temperature :-20° C to +65°C
- Operating Humidity :10% to 90% relative humidity non-condensing
- Color : Black
- Dimension(WxHxT) : 116 x 75 x 17.3mm/li>
