Description

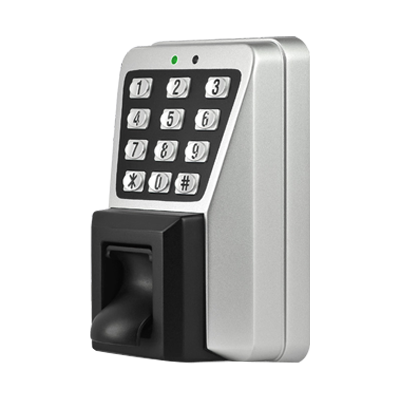

MA500
ACCESS CONTROL TERMINAL
Features:
Users: 3000 Fingerprints,
Card Capacity: 30,000 ,
Transaction: 1,00,000 Logs,
Sensor: Optical Sensor with protective cover.
TECHNICAL SPECIFICATIONS
- Users: 3000 Fingerprints
- Card Capacity: 30,000
- Transaction: 1,00,000 Logs
- Sensor: Optical Sensor with protective cover
- Algorithm Version: Finger V10.0
- Optional proximity or mifare card reader
- Communication: TCP/IP, RS485
- Access Control Interface: Electric lock, Door sensor, Alarm, Exit button
- Wiegand Signal: Wiegand out
- Power Supply: 12V DC, 3A
- Operating Temperature: 0°C – 45°C
- Operating Humidity: 20% – 80%
- Dimension(WxHxD): 83 x 127.5 x 74 mm
- Ingress Protection Rate: IP65
FEATURES
- Vandal resistant & IP65 waterproof, ideal for outdoor installation
- – Combine master and slave system to secure the entrance and exit with dual biometric authentication simply and easily by RS485
- – Support Anti-passback to maximize security level
- – Configurable wiegand output to connect with most of the access control panel brands, easy replacement into existing systems
- – Various types of alarm such as tamper alarm, door sensor alarm, duress alarm etc.
